Solar String Sizing: How to Calculate Panels Per String Without Killing the Inverter

Quick answer: String sizing is the calculation that decides how many panels go in series on each input of your inverter. Get the maximum wrong and cold weather pushes the array above the inverter’s voltage limit, which destroys it and voids the warranty. Get the minimum wrong and the inverter drops out on hot afternoons. The whole job comes down to correcting panel voltage for your site’s record low and record high temperatures.

What does this solar string sizing guide cover?

• How does temperature affect solar panel voltage?
• What five numbers do I need for string sizing?
• How do I calculate maximum string length?
• How do I calculate minimum string length?
• Can you show a string sizing calculation example?
• What is DC to AC ratio and clipping?
• What mistakes can destroy an inverter?
• FAQ

How does temperature affect solar panel voltage?

A solar cell’s open-circuit voltage falls as it gets hotter and rises as it gets colder. This is physics, not a defect.

The datasheet gives a temperature coefficient of Voc, usually somewhere around minus 0.25% to minus 0.30% per degree Celsius. The minus sign means voltage goes up when temperature goes down.

Panel ratings are measured at 25 degrees Celsius. A freezing sunrise at minus 20 degrees is 45 degrees below that reference. At minus 0.28% per degree, that is a voltage increase of about 12.6%.

A string that reads a comfortable 540 volts on a mild day therefore reaches roughly 608 volts on that cold morning. If the inverter is rated to 600 volts, it is already damaged.

This is why cold-climate arrays use shorter strings than warm-climate arrays with identical hardware.

What five numbers do I need for string sizing?

Gather these before you calculate anything.

Panel Voc. Open-circuit voltage at standard test conditions, from the module datasheet.

Panel Vmp. Voltage at maximum power, also from the datasheet.

Temperature coefficient of Voc. Expressed as percent per degree Celsius, sometimes as volts per degree.

Record low and high ambient temperature for your site. Use the extreme minimum design temperature for the maximum calculation, not an average winter day. Use the two percent design high, plus a cell heating allowance, for the minimum calculation.

Inverter limits. Maximum DC input voltage, the maximum power point tracking voltage window, maximum input current per tracker, and maximum short circuit current.

Design temperatures are published in engineering weather data for most locations. Your local building department or the module manufacturer’s design tool will have them.

How do I calculate maximum string length?

The maximum is set by the coldest expected temperature and the inverter’s absolute voltage ceiling.

First correct the panel Voc for cold. Take the temperature difference between your record low and 25 degrees Celsius. Multiply by the coefficient. Add that percentage to Voc.

Then divide the inverter’s maximum DC input voltage by that corrected Voc. Round down to a whole number. Never round up.

Rounding up is the single most expensive error in this calculation. The inverter’s voltage limit is an absolute rating, not a guideline, and exceeding it is treated as an installation fault rather than a warranty claim.

Some designers deliberately leave one panel of headroom below the calculated maximum. That margin costs a little production and removes the risk of an unusual cold snap.

How do I calculate minimum string length?

The minimum is set by the hottest expected cell temperature and the bottom of the inverter’s tracking window.

Cells run hotter than the air around them. On a roof in still air the cell can sit 25 to 30 degrees Celsius above ambient. Add that allowance to your design high temperature before correcting Vmp downward.

Correct Vmp for that hot cell temperature, then divide the bottom of the inverter’s tracking window by the corrected Vmp. Round up this time.

If the string is too short, the array voltage falls below the tracking window on hot afternoons. The inverter then stops tracking and production drops to zero at exactly the hours you needed it. This failure is quieter than the voltage overrun, and it can go unnoticed for years.

Can you show a string sizing calculation example?

Cold correction is 45 degrees below reference at 0.27% per degree, which is 12.15%. Corrected Voc is about 55.5 volts. Dividing 600 by 55.5 gives 10.8, so the maximum string is 10 panels.

Hot correction is 40 degrees above reference, which is 10.8%. Corrected Vmp is about 37.0 volts. Dividing the 200 volt window floor by 37.0 gives 5.4, so the minimum string is 6 panels.

The usable range for this combination is therefore 6 to 10 panels per string. Any layout outside that range is a design error regardless of how the array looks on the roof.

What is DC to AC ratio and clipping?

String length decides voltage. Total array size decides the DC to AC ratio.

Installers routinely fit more DC panel capacity than the inverter’s AC rating. A ratio between about 1.1 and 1.3 is normal. It captures more energy in the morning and evening, and on cloudy days, when the array never reaches full output anyway.

The cost is clipping. On the few brightest hours of the year, the array wants to produce more than the inverter can pass, and the excess is lost.

A modest amount of clipping is economically correct. Inverters cost money and those peak hours are rare. Excessive oversizing wastes panels. Ask your installer what annual clipping loss the design model predicts, and be sceptical of anything above a few percent. Our inverter sizing mistakes guide covers this tradeoff.

What mistakes can destroy an inverter?

Using average winter temperature instead of record low. The array does not care about averages. It sees the coldest morning.

Rounding the maximum up. One extra panel can put a string past the ceiling.

Ignoring cell temperature rise for the minimum. Ambient high is not cell high. The difference is 25 degrees or more.

Mixing panel models in one string. Series current is limited by the weakest module. Mismatched panels waste output permanently.

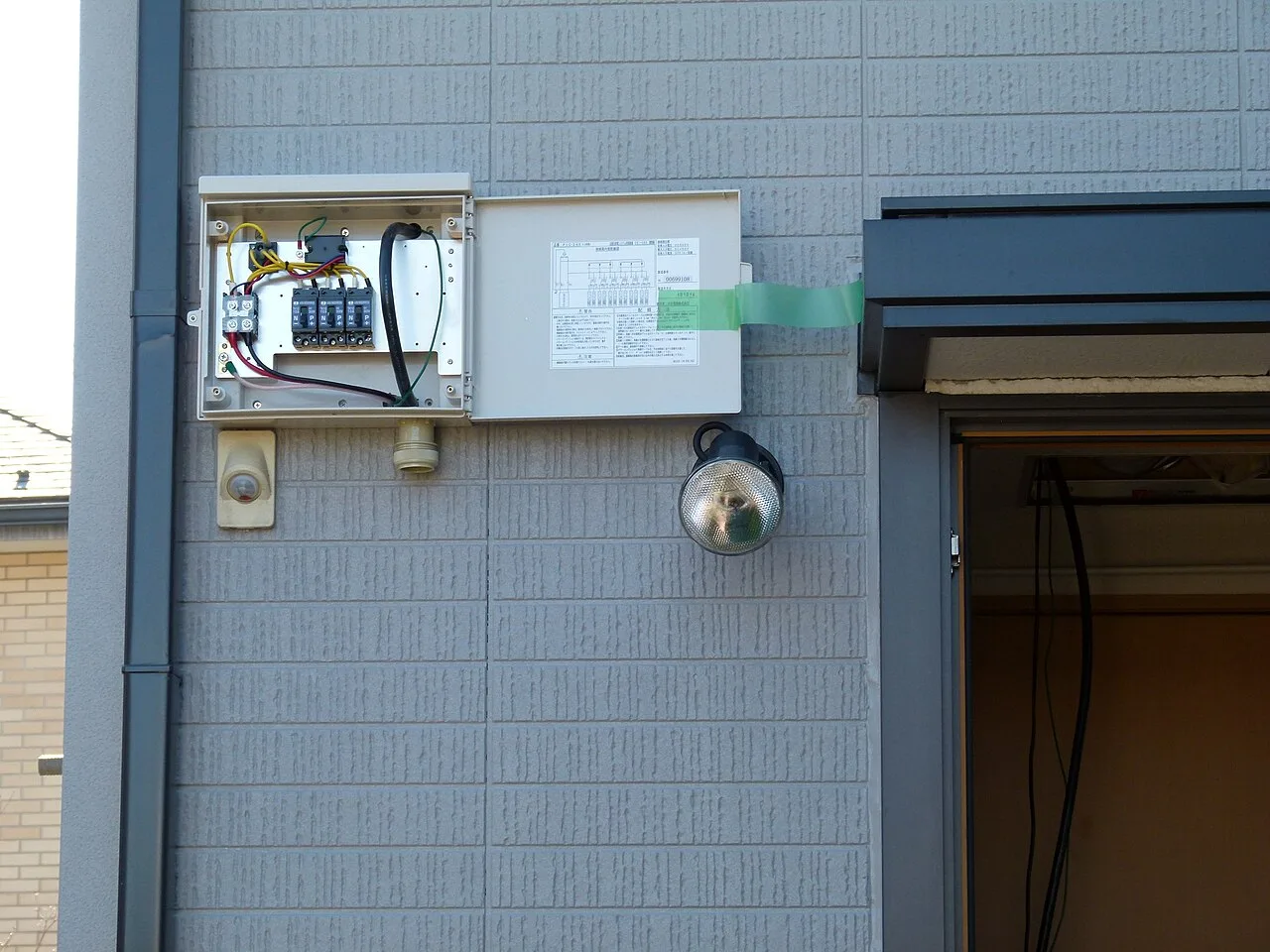

Unequal string lengths on one tracker. Two strings of different lengths on the same maximum power point tracker will never both operate at their optimum.

Forgetting the current limit. Voltage is not the only constraint. Check the maximum input current and short circuit current per tracker as well.

FAQ

What is solar string sizing?
It is the calculation that determines how many panels can be wired in series on each inverter input without exceeding voltage limits in cold weather or falling below the tracking window in hot weather.

Why does cold weather matter more than heat?
Cold raises panel voltage. Exceeding the inverter’s maximum DC input voltage destroys it immediately, and the damage is not covered by warranty.

What temperature should I design for?
The extreme minimum design temperature for your location, not an average. Local engineering weather data provides this figure.

Can strings on the same inverter have different lengths?
Only if they are on separate maximum power point trackers. Different lengths on one tracker compromise both strings.

What is a good DC to AC ratio?
Commonly between 1.1 and 1.3. Higher ratios capture more low-light energy but clip more on the brightest days.

Do microinverters need string sizing?
No. Each panel has its own inverter, so there is no series string to size. That is one of the practical advantages covered in string inverter vs microinverter.

What happens if my string is too short?
On hot afternoons the array voltage can fall below the inverter’s tracking window and production stops until conditions change.

Where should I go after learning string sizing?

Read solar inverter types for architecture choices, three-phase inverters for larger services, and grid codes for the interconnection requirements that also shape the design.

Design temperature data and system engineering guidance are published by the National Renewable Energy Laboratory and the U.S. Department of Energy.
